Product Brief - Model C1190A Omni2

Omni2 Alarm Warning Display -

picarrow One/Two Channel Device
arrow Connects to Multiple Sensing Instruments
arrow IEC61508 SIL2 Safety Rating
arrow Environmentally Protected to IP55/IP65
arrow Fully Dual Redundant Alarm Circuits
arrow Bright Solid State LED Display
arrow Audible Alert (Internal and External)
arrow Rest/Test/Mute Key Switch
arrow Repeat Outputs
arrow Instrument Failure Output

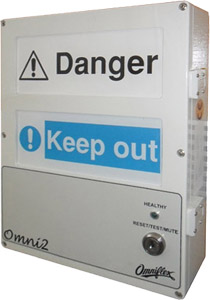

The Omni2 Alarm Warning Display is a compact wall mounted visual alarm indicator designed for the Nuclear Industry for radiation and airborne contaminant hazard warning with IEC61508 SIL 2 Safety Rating.

Note: This product has been superseded by Model C1190B due to the change in terminal design.

Overview
The Omni2 alarm annunciator is a compact wall mounted visual alarm indicator designed for radiation and airborne contaminant hazard warning. The Omni2 is used to safeguard against personnel inadvertently entering plant areas where abnormal radiological conditions are present.

Typical Application
Position the Omni2 on the wall adjacent to the entrance to an environmentally segregated area. Connect the Omni2 to the area monitors, and if airborne contamination or high radiation conditions are present in the area, a large bright flashing visual warning of the nature of the hazard is displayed, to deter entry to the area.

High Reliability Design
The Omni2 features full dual redundant design for each of the two alarms, solid state logic and visual display, providing a highly reliable alarm system, meeting or exceeding the functional safety requirements of these critical applications.

The Omni2 is designed to meet the requirements of SIL2 safety systems as defined in IEC61508.
