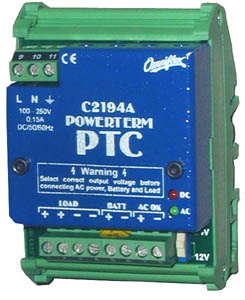

Product Brief - Model C2194A Powerterm PTC PSU/Chrgr AC; 12/24V@0.66A

Powerterm PTC PSU/Chrgr AC; 12/24V@0.66A

picarrow DIN Rail mounting
arrow 12Vdc or 24Vdc output selectable.
arrow Operates from 85-264Vac universal ac supply
arrow 660 mA @12V and 330 mA @24V load plus charge current
arrow Under-voltage cutout to protect battery from deep discharge.
arrow Charging characterised for sealed lead-acid cells.
arrow Independent battery and load terminals for ease of installation.
arrow Over-current protection to protect wiring against faults.
arrow  AC detect output for mains monitoring.


Powerterm PTC 85-264Vac. 24/12Vdc 0.66A Charger for Battery Backed instrument power supply. DIN Rail or surface mount QTY Discount 10-24 less 5% , 25 upward less 10%.


The PTC is a very compact combined Power Supply and Battery Charger system with integrated standby battery management ideally suited for RTU supply applications with Teleterm M Series Products.

Just connect mains supply 85 to 264Vac, standby battery and load for an industrial grade standby power supply system for Remote Terminal Units.

This DIN rail mounted product is ideal for providing dc power to instrument systems where battery backup is necessary to ensure continuous system operation during power failure.

Applications include RTUs, dataloggers, remote field instruments, alarm systems and access controllers.

Managing battery-backed systems for optimum backup time and battery life can be tricky and expensive. This product incorporates many features that make installing such systems simple and foolproof.

Batteries are capable of delivering enormous currents under system fault conditions that can damage wiring and equipment. The PTC incorporates an autoresettable load cutout, which disconnects the load under over-current fault condition.

During prolonged power outages, the back-up battery will eventually discharge. If the load remains connected, the battery enters its deep discharge phase, which can cause irreparable damage to the battery, and reduce its capacity and life. The PTC incorporates an undervoltage cutout that disconnects the load when the battery voltage begins to fall.

This product is well proven in RTU and remote standby applications exposed to harsh environments.
