Product Brief - Model C2401B Omniterm TXB Universal Input Tx

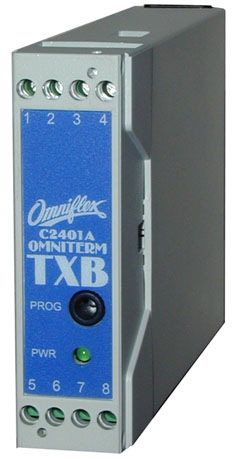

Omniterm TXB Universal Input Tx
This Universal four-wire transmitter is designed for the widest range of signal conditioning applications in a single off-the-shelf product, using state-of-the-art digital measurement and filtering techniques, combined with extreme user-friendliness. OVERVIEW The OMNITERM TXB Universal four-wire transmitter is designed for the widest range of signal conditioning applications in a single off-the-shelf product. Configuration to any input range can be done in minutes without the need any any special test equipment other than a personal computer. This product provides extremely low life-cycle costs by reducing spares stock-holding requirements, and reducing specialist technical expertise required for field support, module replacement and field configuration. This new holistic approach to instrumentation asset management ensures reliable performance and minimal down-time. FULL SPECIFICATION The input will accommodate most thermocouple and resistance bulb types, as well as voltages and currents from 1mV minimum to 10Vdc maximum input span. (Extended ranges are available - see Order Codes on the datasheet.) The output can be configured for unipolar or bipolar outputs of current or voltage from ± 1mA to ± 10mA; 0-20mA; or ± 1V to ± 10V. Full isolation (input/output/power supply) to 1500Vac ensures trouble-free accurate measurement. COST EFFECTIVE Using advanced sigma-Delta A/D technology combined with sophisticated digital filtering techniques, the TXB offers 16 bit measurement resolution with increased dynamic range, tailored for noisy plant environments, in a "surprisingly cost effective package". MANAGING TRANSMITTER CONFIGURATION - THE EASY WAY Omniset, the powerful but intuitive configuration software ensures the maximum instrument flexibility with reliable configuration management to ensure all instruments on the plant are always correctly configured to the design requirements specification. Calibration can also be checked while units are installed, without touching the wiring. HIGH RELIABILITY This product has been designed with high reliability applications in mind. The output stage has a unique built in overload indicator to detect overloaded output circuits - whether from a wire break or just excess resistance in the line. This Product has been certified to IEC61508 SIL1 safety standard and undergone Emphasis assessement for use in the UK Nuclear Industry. PART OF THE FULL RANGE
The Omniterm TXB is part of the latest Omniterm range of signal conditioning modules.
Contact Omniflex, and try one. You will never see signal conditioning the same again. |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TC/mV/VC/RB universal Input in one product
