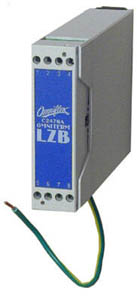

Product Brief - Model C2476A OMNITERM LZB Dual Contact Surge Protected Inputs

Omniterm LZB Dual Contact,Surge

picarrow DIN Rail or surface mountable
arrow Narrow 22.5mm module width
arrow Short Circuit Proof Inputs an outputs
arrow Wide operating temperature range
arrow CE Mark Compliant
arrow 500Vac Isolation Input/Output

Omniterm LZB Input 2 Potential Free Contacts. Two Solid State Outputs with surge protection. Surge Current discharge protection 10kA 8/20μs nominal. Isolation 1500V Input to Output. Powered from 10 to 30Vdc.

The OMNITERM LZB is a dual input field contact interface module designed to protect RTU and PLC installations from external factors such as lightning surges, ground loops and wiring faults.

This module includes a fully specified surge arrestor, a signal isolator and a high side output driver allowing you to combine all three functions into a single module.

Forming part of OMNIFLEX' extensive OMNITERM range of industrial instrumentation, the OMNITERM LZB is designed to be DIN rail or surface mounted and is a space saving 22.5mm wide, or 11.25mm per channel.

See the companion Omniterm LZD datasheet for dual analogue inputs with surge protection.
