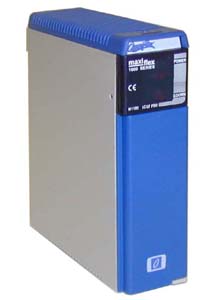

Product Brief - Model M1102B Maxiflex 24Vdc Logic PSU

Maxiflex 24Vdc Logic PSU

picarrow Operate MAXIFLEX systems from 24Vdc
arrow Fits in PSU Slot of MAXIFLEX Base
arrow Wide input operating range
arrow Power Supply Monitoring for reliable system operation
arrow CE certified for international application
arrow Logic Supply Healthy indication

Maxiflex DC Logic Power Supply. 24Vdc input to the PSU provides the primary logic power for the base.

The M1102B Power Supply Module is powered from an external +24Vdc (nominal) supply, and provides the primary logic power for a MAXIFLEX I/O Base.

This power supply module operates over a wide input voltage range of 20-36Vdc, allowing Maxiflex systems to be operated on 24Volt battery systems. All connections to the module are made via screw terminals located behind the door on the front of the module. These terminals are removable for easy module replacement.
