Product Brief - Model M1330A Maxiflex 8 Dig In (9-30Vdc) 8 Relay Out

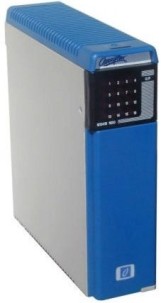

Maxiflex 8 Dig In (9-30Vdc) 8 Relay Out

picarrow Fits in any MAXIFLEX base I/O slot
arrow 8 Digital Inputs and 8 Relay contact Outputs
arrow 9-30Vdc input voltage range
arrow LED Input/Output Indication
arrow Inputs electrically insulated from Outputs
arrow Positive or Negative Common Supply
arrow Removable Terminal Blocks
arrow Hot Plug-in
arrow In system automatic module detection

Maxiflex 8DI8RO Module. 8x 9-30Vdc Digital Inputs 8 Relay Output (shared common).

The M1330A 8DI8RO module accept 8 digital inputs powered externally from either a positive or negative common circuit, and provides 8 Relay outputs. The inputs are electrically isolated from the outputs to allow them to be used in separate electrical circuits.

All inputs are opto-isolated from the system logic.

The module may be inserted into any I/O slot in a Maxiflex system.

The status of each input and output is displayed on a 4x4 LED matrix on the front of the module.

The module can be inserted or removed while the system is powered.
