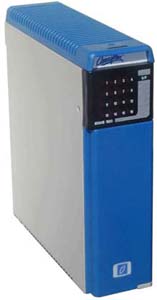

Product Brief - Model M1412A Maxiflex 8 Analog Out (4-20mA) 0V Comm

Maxiflex 8 Analog Out (4-20mA) 0V Comm

picarrow Fits in any MAXIFLEX base I/O slot
arrow 8 analog outputs of 0-20mA/4-20mA
arrow Powered from external 24Vdc supply
arrow Outputs isolated from Logic
arrow High 1kohm output loop drive capability
arrow Removable Terminal Blocks
arrow Hot Plug-in
arrow In system automatic module detection
arrow CE Approved

Maxiflex 8AO module. 8 channels analog out (4-20mA). Individual common -ve terminals, commoned internally.

The M1412A 8AO module provides 8 analogue outputs.A link in the module selects all outputs to be either 0-20mA or 4-20mA. Reduced output current ranges can be achieved through software scaling. The outputs are isolated from the logic, and are powered from an external 24Vdc supply.

The module may be inserted into any I/O slot in a Maxiflex system. Inputs are terminated on plug-in screw terminals. The module can be inserted or removed while the system is powered. Auto-detection capability allows the CPU to recognise the presence of this module in the system.
