Instrument Power Supplies and Battery Chargers

POWERTERM combined PSU/Battery Chargers

UNIQUE COMBINATION of POWER SUPPLY AND BATTERY CHARGER

The POWERTERM PSU/Charger range offers a complete solution for small battery-backed dc instrument power systems such as RTU's and remote instrument panels.

Supply 12Vdc or 24Vdc systems with continuous power during ac line interruptions without the need for inverters or mains UPS's.

These units provide a complete solution in a single compact package. Add up all of the functions, and try to find a lower cost, more space efficient solution.

Built-in features include:

  • dual-mode charger for sealed lead acid (SLA) battery

  • under-voltage cut-out to protect battery from deep discharge

  • accurately current limited battery charging for optimum battery life

  • temperature sensing for optimum battery float voltage

  • charger shutdown input for automatic battery testing (on some models)

  • independent battery and load terminals for ease of installation and maintenance

  • integrated ac OK monitor relay output

MODELS

 PTC - Input 100-240Vac; Output 12V or 24V; 0.6A/0.3A continuous load; 0.6A charger
 PT1000C - Input 100-240Vac; Output 12V or 24V; 0.5A continuous load; 0.5A charger
 PT2000C - Input 100-240Vac; Output 12V or 24V; 1.5A continuous load; 0.5A charger
 PT5000C - Input 115/230Vac; Output 12V or 24V; 4A continuous load; 1A charger
 PT L50C-D - Input 100-240Vac; Output 12V AND 24V; 50 Watts continuous load & charge
 PT L120C-D - Input 100-240Vac; Output 12V AND 24V; 120 Watts continuous load & charge

 PTS

PT1000C



 PT2000C

 PT5000C







POWERTERM combined PSU/Solar Charger

CONVENIENT COMPANION TO TELETERM PRODUCTS

The Powerterm PTS is a combined Solar Regulator and Power Supply system with integrated standby battery management for small solar powered applications.

Just connect a solar panel, sealed lead acid battery and load for an industrial grade solar powered system.

This DIN rail mounted product is ideal for providing dc power to Teleterm M2-series RTU systems when mains power is not available. Applications include RTU’s, dataloggers, remote monitoring, and alarm systems.

Built-in features include:

  • A Complete solution for small solar powered instrument power systems.

  • Works with 12V or 24V Solar panels.

  • Ideal for Teleterm M2 RTU’s, dataloggers, remote field instrumentation, alarm systems, remote access systems etc.

  • temperature sensing for optimum battery float voltage

  • integrated Charging monitor output

MODELS

 PTS - Input 12V or 24V Solar Panels; UP to 5A continuous load; 8A Solar Panels

 PTS

POWERTERM series Instrument Power Supplies

LOW COST POWER SUPPLIES

The POWERTERM 'P' series range of dc power supplies is specifically designed for industrial instrumentation applications. Use of carefully selected long-life components and conservative design parameters ensure increased reliability even in harsh conditions.

This third-generation family of power supplies uses the latest switch-mode supply technology to reduce cost, increase reliability and meet international safety and compatibility standards.

  • Universal ac inputs 85-264Vac on all models

  • Slim design for minimum DIN rail space.

  • Enclosed housings with protected terminals for safe mounting in serviceable areas/p>

MODELS

 P15-24 - low cost basic model Input 85-264Vac; Output 24V 650mA maximum

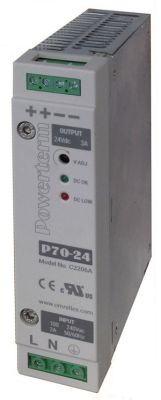

 P70-24 - low cost basic model Input 85-264Vac; Output 24V 3A maximum
 P120-24 - low cost basic model Input 85-264Vac; Output 24V 5A maximum
 P240-24 - low cost basic model Input 85-264Vac; Output 24V 10A maximum

P15-24

P70-24

P120-24

P240-24





POWER SUPPLIES TO DEPEND UPON

The POWERTERM range of dc power supplies is specifically designed for industrial instrumentation applications. Use of carefully selected long-life components and conservative design parameters ensure increased reliability even in harsh conditions. Convenient DIN rail mounting and plug-in terminals on some models make these power supplies ideal for powering instrument panels

  • universal ac inputs 85-264Vac on all models

  • removable terminal blocks on most models for easy system maintenance

  • enclosed housings with protected terminals for safe mounting in serviceable areas

A wide range of models are offered:

MODELS

 PT1K - low cost basic model Input 85-264Vac; Output 9V, 12V, 15V, 24V 20W maximum
 PT2K - low cost basic model Input 85-264Vac; Output 9V, 12V, 15V, 24V 50W maximum
 PT5K - low cost basic model Input 115/230Vac; Output 9V, 12V, 15V, 24V 120W maximum
 PT500 - General Purpose Input 85-264Vac; Output 9V, 12V, 15V, 24V 12W maximum
 PT2000 - General Purpose plug-in terminals Input 85-264Vac; Output 9V, 12V, 15V, 24V 50W maximum
 PT5000 - General Purpose with monitor relay Input 110/230Vac; Output 12V, 24Vdc 120W max
PT500

PT2000

 PT5000
