Product Brief - Model CMT1106X 10.1 Inch HMI, USB, Serial, Ethernet
10,1 Inch HMI, USB, Serial, Ethernet Port
  10.1" 1024 x 600 TFT LCD, LED Backlight
Built- in 4GB Flash Memory and RTC
Fan-less Cooling System
Built-in Power Isolation
NEMA4 / IP66 Compliant Front Panel
Works with M02 WiFi Expansion Module that supports wireless communication
10.1" 1024x600 Pixels. Modbus and PLC drivers refer brochure. Uses Easybuilder Software for Screen Application development, 1x Ethernet, 2x USB and 2x Serial Port, requires prog cable for downloading applications. CUTOUT(WxH) 260x202mm
Click the button to view of overview of EasyView HMIs.
SPECIFICATIONS
|
Display
|
|
Display:
|
10.1" TFT
|
|
Brightness (cd/m2):
|
350 cd/m2
|
|
Contrast Ratio:
|
500:1
|
|
Color:
|
16.7million
|
|
Resolution (WXH):
|
1024x600
|
|
Back Light:
|
LED
|
|
Back Light Life Time:
|
>50 000 hr
|
| LCD Viewing Angle (T/B/L/R) |
70/70/80/80 |
|
|
Processor:
|
Quad core RISC
|
|
Enclosure:
|
Plastic
|
|
Touch Panel
|
|
Type:
|
4 wires resistive type
|
| Accuracy: |
Active Area Length(X)±2% Width (Y)±2% |
|
|
Memory:
|
|
Flash:
|
4 GB Flash
|
|
RAM (RAM):
|
1 GB
|
|
|
I/O ports
|
|
SD Card Slot:
|
N/A
|
|
USB Host:
|
USB 2.0 x 1
|
|
USB Client:
|
N/A
|
|
Ethernet Port:
|
10/100 Base-T
|
|
COMPort:
|
Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
MPI is not supported
|
| RS485 Dual Isolation |
N/A |
|
Audio:
|
N/A
|
|
|
Power
|
|
Input Power:
|
24 ±20% VDC
|
| Power Isolation: |
Built-in |
|
Power Consumption:
|
720mA@24VDC
|
|
|
RTC:
|
Built-in
|
|
Specification
|
| PCB Coating: |
Yes |
| Dimension (WxHxD): |
271x213x38mm |
|
Panel Cutout (WXH):
|
260x202mm
|
|
Weight (KG):
|
Approx 1.2kg
|
| Mount: |
Panel mount, VESA mount: 75x75mm |
|
| Environment: |
|
CE:
|
CE Marked
|
|
UL:
|
E248297
|
|
Voltage Resistance:
|
500 VAC (1 min)
|
|
Isolation Resistance:
|
Exceed 50MΩ at 500 VDC
|
|
Vibration Endurance:
|
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
|
|
Protection Structure:
|
NEMA4/IP66 front panel
|
|
Storage Temperature:
|
-20°~60°C (-4°~140°F)
|
|
Operating Temperature:
|
0°~50°C (32°~122°F)
|
|
Operation Humidity:
|
10-90% RH (non-condensing)
|
|
*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
MECHANICAL DIMENSIONS

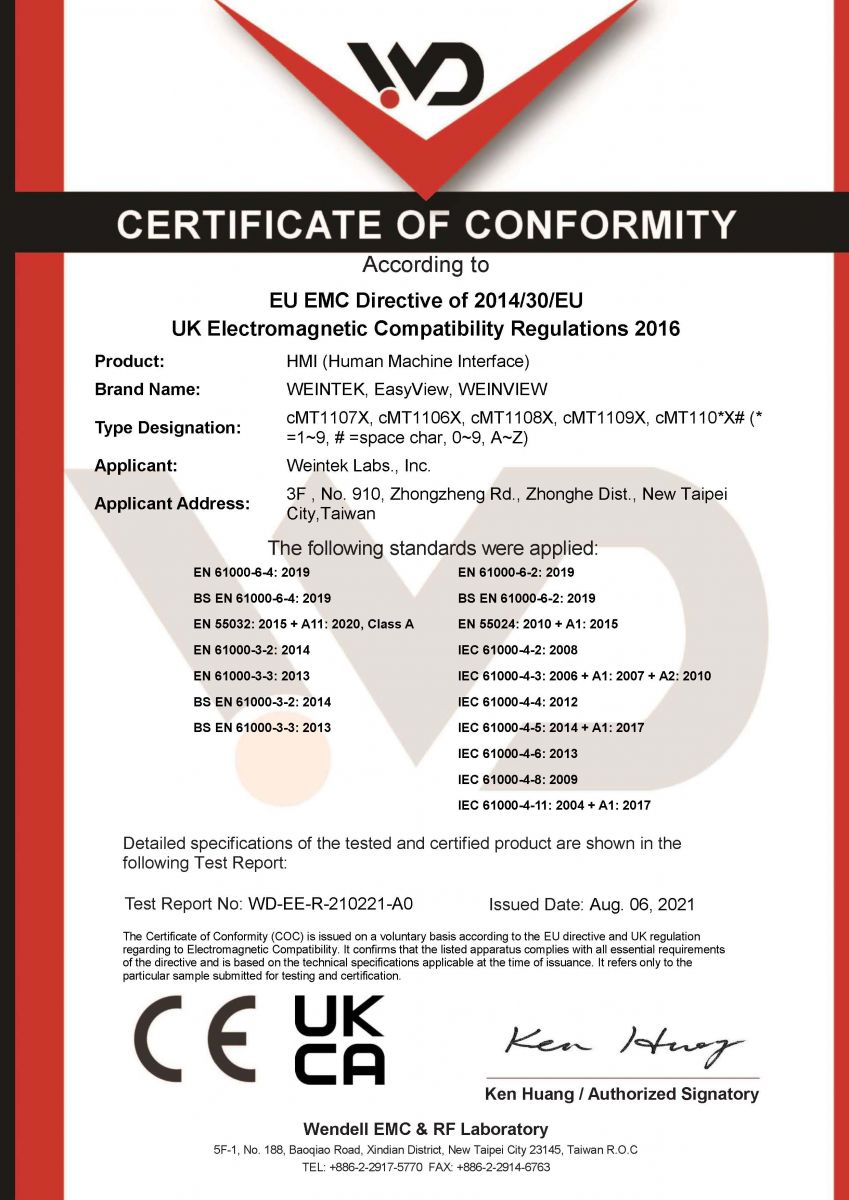

CERTIFICATION
