15 Inch HMI, USB, Serial, Ethernet Port, CAN Bus
  15" 1024 x 768 VA (Vertical Alignment) LCD
Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor
Tempered Glass, Capacitive Type Touchscreen
Fan-less Cooling System
Built- in 4GB Flash Memory and RTC
SD Card Slot Supports SD/SDHC Cards
CAN Bus Supports CANopen Protocol
COM1 / COM3 RS-485 2W Supports MPI 187.5K
COM1 / COM3 RS-485 & CAN Bus Built-in Isolation
Built-in Power Isolator
NEMA4/IP66 Compliant Front Panel
Built-in EasyAccess 2.0 License
15"VA 1024x768 Pixels LCD HMI. Modbus and PLC drivers. Uses Easybuilder Software for Screen Application development, 2x Ethernet, 1x USB and 2x Serial Port, SD Slot, requires cable for downloading applications. CUTOUT(WxH) 352x279mm
Click the button to view of overview of EasyView HMIs.
SPECIFICATIONS
|
Display
|
| Display: |
15" VA (Vertical Alignment) LCD |
| Resolution: |
1024 x 768 |
|
Brightness (cd/m2):
|
350 cd/m2
|
|
Contrast Ratio:
|
2500:1
|
| Backlight Type: |
LED |
| Backlight Lifetime: |
>70 000 hrs |
|
Color:
|
16.2 million
|
|
LCD Viewing Angle (T/B/L/R):
|
88/88/88/88
|
|
Pixel Pitch (mm):
|
0.297 (H) x 0.297 (V)
|
|
|
Touch Panel
|
|
Touch Panel Type:
|
Tampered Glass, Capacitive Type
|
| Hardness Scale: |
7H |
|
|
Memory
|
|
Flash:
|
4 GB
|
|
RAM (RAM):
|
1 GB
|
|
| Processor |
Quad Core RISC |
|
I/O ports
|
|
SD Card Slot:
|
SD/SDHC
|
|
USB Host:
|
USB 2.0 x 1
|
|
USB Client:
|
N/A
|
|
Ethernet Port:
|
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
|
| WiFi: |
M02 WiFi Expansion Module (Optional) |
|
COMPort:
|
Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W, CAN Bus
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
|
| RS-485 Dual Isolation: |
Yes |
| CAN Bus: |
Yes |
| HDMI |
N/A |
|
Audio Output:
|
Built-in Mono Speaker
Audio Line Out - 3.5mm jack x 1
|
|
|
Power
|
|
Input Power:
|
24Vdc ±20%
|
| Power Isolation: |
Built-in |
| Power Consumption: |
1.3A @ 24Vdc |
| Voltage Resistance: |
500Vac (1 min.) |
|
Isolation Resistance:
|
Exceed 50MΩ at 500VDC
|
|
|
RTC
|
Built-in
|
|
Specification
|
|
PCB Coating:
|
Yes |
| Enclosure: |
Front bezel: Plastic, Rear Enclosure: Aluminum |
| Dimension (WxHxD): |
366 x 293 x 51.5 mm |
| Panel Cutout: |
352 x 279 mm |
| Mass: |
Approx. 2.85 kg |
|
Mount:
|
Panel mount, VESA mount 75 x 75 mm
|
|
|
Environment
|
|
Protection Structure:
|
UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
|
|
Storage Temperature:
|
-20° - 60°C (-4° - 140°F)
|
|
Operating Temperature:
|
0° ~ 50°C (32° ~ 122°F)
|
|
Relative Humidity:
|
10% ~ 90% (non-condensing)
|
|
Vibration Endurance:
|
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
|
|
| Certification |
| CE: |
CE marked
|
| UL Listed:: |
cULus Listed |
|
| Software |
| EasyBuilder Pro: |
V6.04.01 or later versions
|
| Weincloud: |
EasyAccess 2.0 (Optional), Dashboard (Optional) |
| |
|
| CODESYS® |
Optional* |
|
* Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
* Dashboard requires EasyBuilder Pro V6.06.01 or later versions.
* CODESYS® is a trademark of 3S-Smart Software Solutions GmbH
MECHANICAL DIMENSIONS

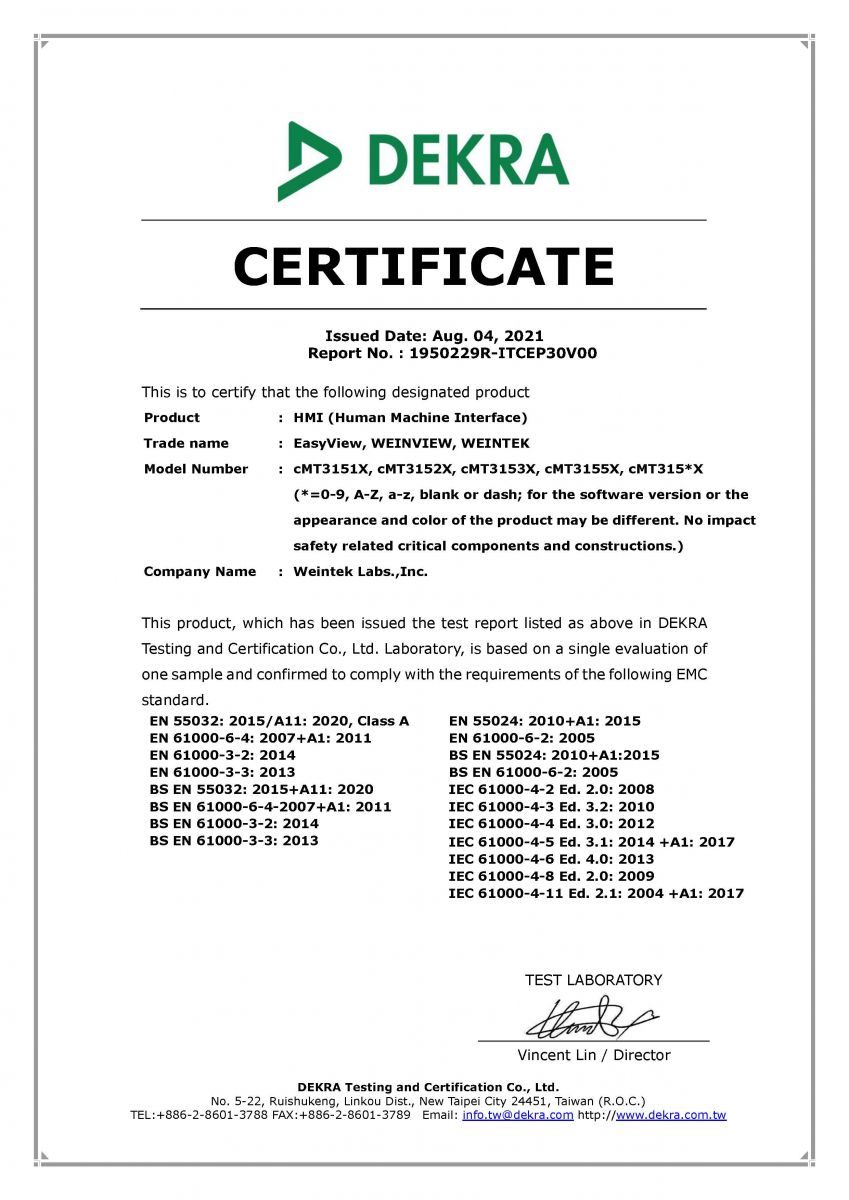

CERTIFICATION
(Click on Certificate to View)
|
|
